HomeProductsJaw Couplings

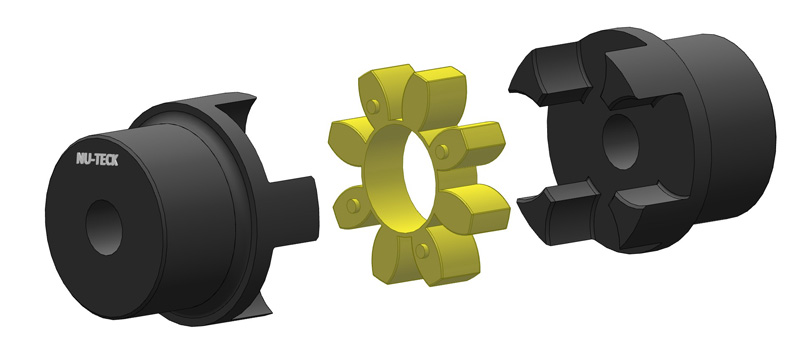

Jaw Couplings

Advantages

Vibration Damping : The elastomer spider (insert) effectively absorbs shocks and vibrations, protecting connected machinery.
Maintenance-Free Operation : No lubrication required, reducing long-term maintenance.
Compact Design : Small size and high torque transmission capacity make it ideal for space-constrained applications.
Fail-Safe : Even if the elastomer fails, the jaws continue to transmit torque, ensuring emergency operation.
Easy Assembly : Simple plug-in design allows quick installation and replacement of the elastomer insert without disturbing hub alignment.

Technical Data & Properties of Spider

TYPE	RED	GREEN	YELLOW

Material	T-PUR Shore Hardness : 98A Short Duration : -50°C to +150°C Continuous : -50°C to +120°C	T-PUR Shore Hardness : 64D Short Duration : -50°C to +150°C Continuous : -50°C to +120°C	T-PUR Shore Hardness : 92A Short Duration : -50°C to +150°C Continuous : -50°C to +120°C
Properties	Higher Torque transmission with average damping. Suitable for Steel, CI & SG Iron Hub material. Excellent resistance to high temperatures.	Higher Torque transmission with average damping. Suitable for Steel, CI & SG Iron Hub material. Excellent resistance to high temperatures.	Improved Vibration Damping. Suitable for all types of Hub material. Excellent resistance to high temperatures.

Service Factor	Primer Mover
Driven Unit (Machinery)	Electric Motor or Steam Turbine	Gasoline or Diesel Engine 4 or mor cyl.	Gasoline or Diesel Engine, more then 6 cyl.
LIGHT : Uniform steady load never exceeding horse rating. Infrequent starting. Agitators, Blowers, Can Filling Machines, Conveyors, Fans, Generators, Pumps, Steering Gears, Stokers	1.0	1.5	2.0
MODERATE : Heavy inertia, moderate shock, frequent starting. Peak loads do not exceed 125% average horsepower. Uneven load: Conveyors, Feeders, Welding, Laundry Washers, Mixers, Paper Mills, Printing Presses, Screens, Textile Industry, Car Pullers.	1.5	2.0	2.5
HEAVY : Heavy shock conditions or frequent reversing peak loads do not exceed 150% average horsepower. Uneven load. Cranes & Hoists, Crushers, Dredges, Elevators, Hammer Mills, Lumber Industry, Machine Tools, Metal Mills, Oil Industry, Rubber Industry, windlass.	2.0	2.5	3.0

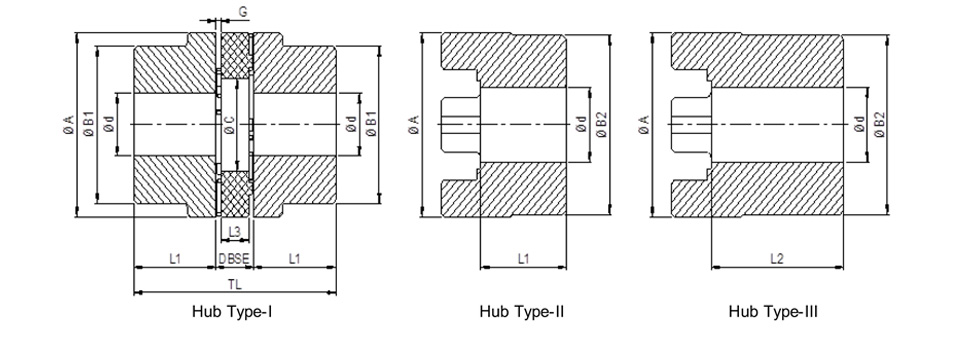

Coupling Size	Hub Type	kW@100 rpm			Torque (Nm)			Max Speed RPM	Bore Dia (Ød)			Dimension (mm)										Assembly
Coupling Size	Hub Type	Yellow	Red	Green	Yellow	Red	Green	Max Speed RPM	PB	Min	Max	ØA	ØB1	ØB2	ØC	DBSE	L3	L1	L2	G	TL	Weight (kg)	MI (Kg-m² )
NRJ-ALUMINIUM HUB
NRJ-19	I	0.1	0.18	0.22	10	18	21	14000		6	19	41	32	-	18	16	12	25	-	2	66	0.11	2.3 X 10^-5
NRJ-19	II	0.1	0.18	0.22	10	18	21	14000		19	24	41	-	41	18	16	12	25	-	2	66	0.14	4.3 X 10^-5
NRJ-24	I	0.35	0.65	0.80	33	62	76	10600		9	24	56	40	-	27	18	14	30	-	2	78	0.24	9 X 10^-5
NRJ-24	II	0.35	0.65	0.80	33	62	76	10600		22	28	56	-	56	27	18	14	30	-	2	78	0.34	19 X 10^-5
NRJ-28	I	0.95	1.75	2.07	91	167	198	8500		10	28	66	48	-	30	20	15	35	-	2.5	90	0.39	20 X 10^-5
NRJ-28	II	0.95	1.75	2.07	91	167	198	8500		28	38	66	-	66	30	20	15	35	-	2.5	90	0.54	42 X 10^-5
NRJ-CAST IRON HUB
NRJ-38	I	1.9	3.5	4.2	182	332	402	7100	10	12	40	80	66	-	38	24	18	45	-	3	114	2.00	1.85 X 10^-3
	II										48		-	78				45	-		114	2.4	2.45 X 10^-3
	III										48		-	78				-	70		164	3.6	3.72 X 10^-3
NRJ-42	I	2.65	5	5.9	253	477	560	6000	12	14	45	95	75	-	46	26	20	50	-	3	126	3.2	4.1 X 10^-3
	II										55		-	94				50	-		126	3.8	5.9 X 10^-3
	III										55		-	94				-	75		176	5.5	8.54 X 10^-3
NRJ-48	I	3.1	5.5	7	296	525	667	5600	13	15	52	105	85	-	51	28	21	56	-	3.5	140	4.96	7.4 X 10^-3
	II										62		-	104				56	-		140	5.45	9.9 X 10^-3
	III										62		-	104				-	80		188	7.51	13.6 X 10^-3
NRJ-55	I	4.1	7.3	8.7	392	694	834	4750	18	20	60	120	98	-	60	30	22	65	-	4	160	6.6	12.3 X 10^-3
	II										74		-	118				65	-		160	7.5	17.3 X 10^-3
	III										74		-	118				-	90		210	10.2	23.7 X 10^-3
NRJ-65	I	6.25	10.2	12	597	973	1155	4250	20	22	70	135	115	-	68	35	26	75	-	4.5	185	10.1	24.5 X 10^-3
	II										80		-	133				75	-		185	11.5	27.8 X 10^-3
	III										80		-	133				-	100		235	15.00	36.3 X 10^-3
NRJ-75	I	12.8	20.73	24.91	1223	1980	2380	3550	28	30	80	160	135	-	80	40	30	85	-	5	210	16.00	54 X 10^-3
	II										95		-	158				85	-		210	18.2	61.4 X 10^-3
	III										95		-	158				-	110		260	21.2	71.5 X 10^-3
NRJ-90	I	24	36.9	47.25	2293	3523	3523	2800	38	40	97	200	160	-	100	45	34	100	-	5.5	245	27.5	138 X 10^-3
	II										110		-	198				100	-		245	36.3 -3	182 X 10^-3
	III										110		-	198				-	125		295	44.8	225 X 10^-3

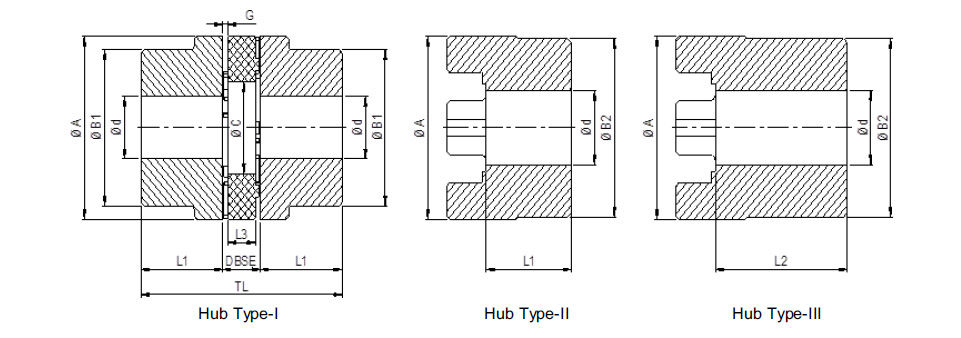

Coupling Size	Hub Type	kW@100 rpm			Torque (Nm)			Max Speed RPM	Bore Dia (Ød)			Dimension (mm)										Assembly
Coupling Size	Hub Type	Yellow	Red	Green	Yellow	Red	Green	Max Speed RPM	PB	Min	Max	ØA	ØB1	ØB2	ØC	DBSE	L3	L1	L2	G	TL	Weight (kg)	MI (Kg-m² )
NRJ-STEEL / STAINLESS STEEL HUB
NRJ-19	I	0.1	0.18	0.22	10	18	21	14000		6	21	41	32	-	18	16	12	25	-	2	66	0.32	6.6 X 10^-5
NRJ-19	II	0.1	0.18	0.22	10	18	21	14000		19	27	41	-	41	18	16	12	25	-	2	66	0.4	12.3 X 10^-5
NRJ-24	I	0.35	0.65	0.80	33	62	76	10600		9	24	56	40	-	27	18	14	30	-	2	78	0.69	25.8 X 10^-5
NRJ-24	II	0.35	0.65	0.80	33	62	76	10600		22	28	56	-	56	27	18	14	30	-	2	78	0.97	54.5 X 10^-5
NRJ-28	I	0.95	1.75	2.07	91	167	198	8500		10	28	66	48	-	30	20	15	35	-	2.5	90	1.12	57.3 X 10^-5
NRJ-28	II	0.95	1.75	2.07	91	167	198	8500		28	38	66	-	66	30	20	15	35	-	2.5	90	1.55	120.4 X 10^-5
NRJ-38	I	1.9	3.5	4.2	182	332	402	7100	10	12	45	80	66	-	38	24	18	45	-	3	114	2.18	2.01 X 10^-3
	II										52		-	78				45	-		114	2.61	2.67 X 10^-3
	III										52		-	78				-	70		164	3.92	4.05 X 10^-3
NRJ-42	I	2.65	5	5.9	253	477	560	6000	12	14	50	95	75	-	46	26	20	50	-	3	126	3.50	4.47 X 10^-3
	II										62		-	94				50	-		126	4.14	6.43 X 10^-3
	III										62		-	94				-	75		176	6.0	9.3 X 10^-3
NRJ-48	I	3.1	5.5	7	296	525	667	5600	13	15	57	105	85	-	51	28	21	56	-	3.5	140	5.4	8.06 X 10^-3
	II										70		-	104				56	-		140	5.94	10.8 X 10^-3
	III										70		-	104				-	80		188	8.18	14.8 X 10^-3
NRJ-55	I	4.1	7.3	8.7	392	694	834	4750	18	20	66	120	98	-	60	30	22	65	-	4	160	7.19	13.4 X 10^-3
	II										78		-	118				65	-		160	8.17	18.84 X 10^-3
	III										78		-	118				-	90		210	11.11	25.8 X 10^-3
NRJ-65	I	6.25	10.2	12	597	973	1155	4250	20	22	78	135	115	-	68	35	26	75	-	4.5	185	11.0	26.68 X 10^-3
	II										88		-	133				75	-		185	12.52	30.3 X 10^-3
	III										88		-	133				-	100		235	16.34	39.53 X 10^-3
NRJ-75	I	12.8	20.73	24.91	1223	1980	2380	3550	28	30	90	160	135	-	80	40	30	85	-	5	210	17.43	58.8 X 10^-3
	II										105		-	158				85	-		210	19.82	66.87 X 10^-3
	III										105		-	158				-	110		260	23.09	77.87 X 10^-3
NRJ-90	I	24	36.9	47.25	2293	3523	3523	2800	38	40	107	200	160	-	100	45	34	100	-	5.5	245	29.95	150.3 X 10^-3
	II										132		-	198				100	-		245	39.53	198.2 X 10^-3
	III										132		-	198				-	125		295	48.79	245 X 10^-3

Misalignment Data

NU-TECK Sizes	19	24	28	38	42	48	55	65	75	90
Max. Axial Misalignment (mm)	1.2	1.4	1.5	1.8	2	2.1	2.2	2.6	3	3.4
Max. Radial Misalignment (mm)	0.2	0.22	0.25	0.28	0.32	0.36	0.38	0.42	0.48	0.5
Max. Angular Misalignment (degree)	0.9	0.9	0.9	1	1	1.1	1.1	1.2	1.2	1.2
